Seat Adjustment Motors

Cebi offers four different types of seat adjustment motors which improve driving ergonomics and comfort. The first one is the recliner that tilts the backrest of the seat according to the driver's needs. The second adjusts the height of the seat and the third motor regulates the cushion. The fourth motor inclines the part located at the front of the seat to adjust the thigh support. Cebi also provides rare-earth magnet motors with different sizes. As demand for this product is booming, our experts are developing new motor concepts and are lowering noise levels.

Key characteristics

  • Large variety of designs based on customer requirements
  • Proven reliability
  • Low level of noise
  • Compact size
  • Two different magnets: ferrite or neodymium
  • Stall torque from 0.2 to 0.3 Nm
  • High performance of EMC suppression

seat motor, automotive motor

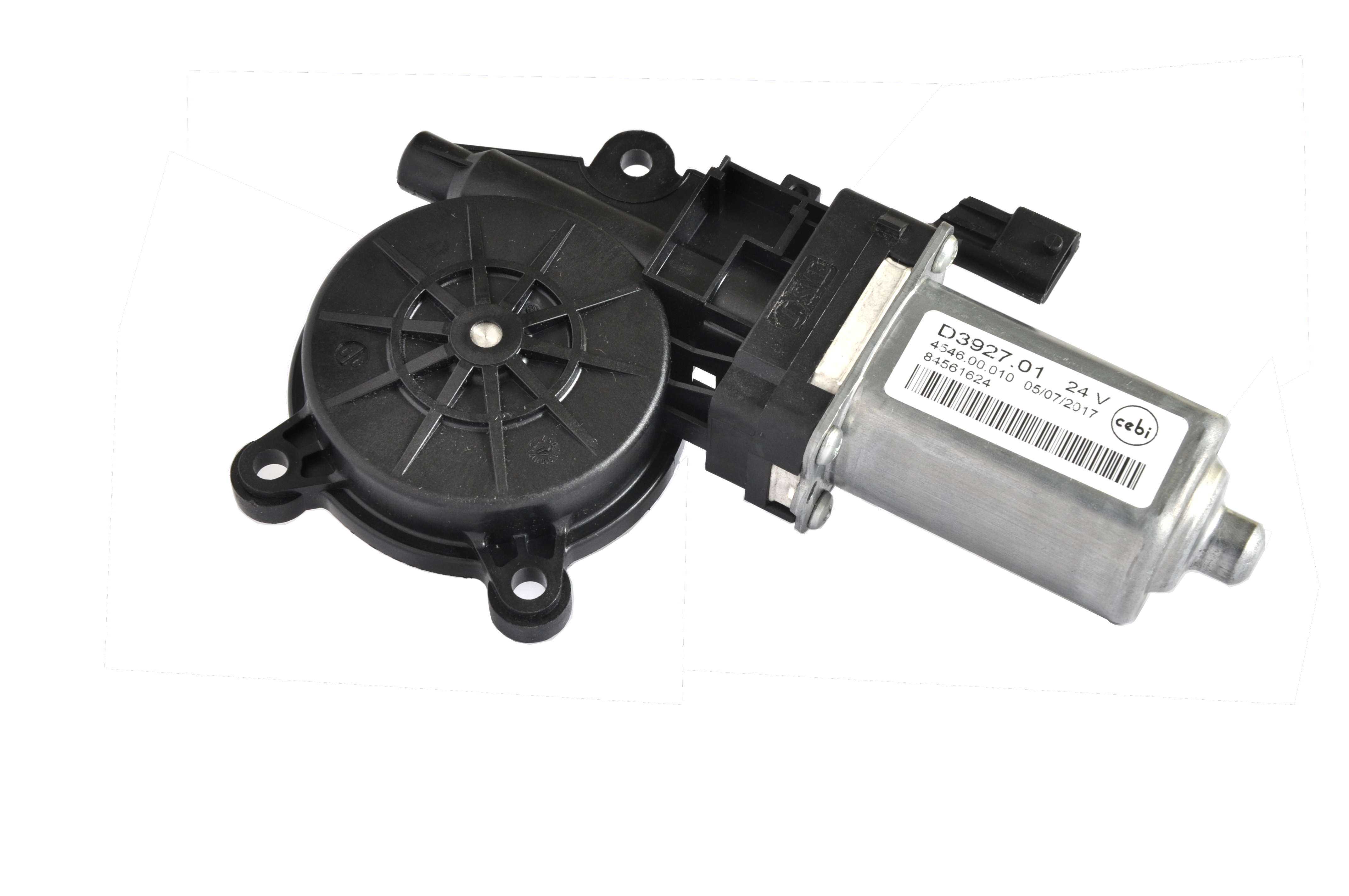

Window Lifter Motors

Cebi's window lifter motors will open and close windows of any vehicle (trucks included). The two main advantages of this electromechanical component are its flexibility and the high level of automation. Cebi's flexibility allows us to meet our customer's varied requirements and to produce in small quantities. Our sophisticated technology also plays an important role in optimizing noise and weight.

Key characteristics

  • Proven reliability
  • Patent protected
  • Large variety of designs based on customer requirements
  • Available with or without the gear unit
  • Low noise emission
  • Compact size
  • Stall torque motor from 0.2 to 0.35 Nm without gear and from 8 to 12 Nm with gear

window motor, electric motors

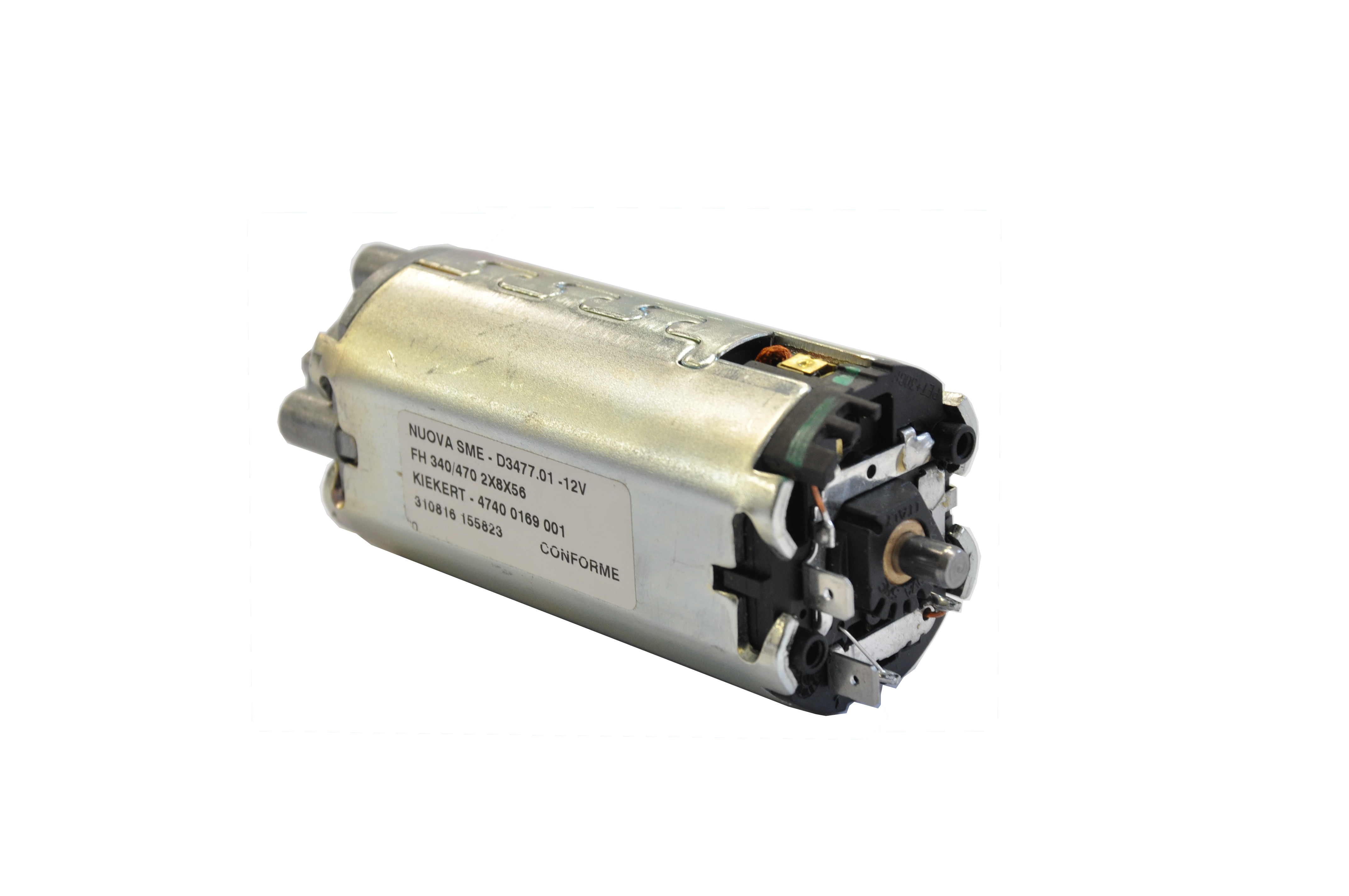

Sliding Door Motors

Cebi's motors are used for either sliding doors or the motorized opening of the side doors. Our cutting edge technology, innovative designs, equipment and assembly lines allow Cebi to achieve significant noise reductions.

Key characteristics

  • Large variety of designs based on customer requirements
  • DC Motor with stall torque: 0.5 to 0.9 Nm
  • No load speed: 2000 to 7000 rpm
  • Low noise emission

door motor

Trunk Latch Motors

These motors can be used as power latches on any vehicle. Our latch systems enable the trunk or door to close completely once the latch interfaces with the striker. As the gearing requirements differ from one customer to another, Cebi has all the tools to develop specific motors (simulation for the calculation of the gearing) and owns several laboratories worldwide to test and validate each design.

Key characteristics

  • High modularity
  • Weight reduced
  • DC motor with stall torque: 0.2 to 0.25 Nm
  • No load speed: 2000 to 4000 rpm
  • EMC filter and thermo switch
  • Low noise emission

trunk motor, latch actuator
